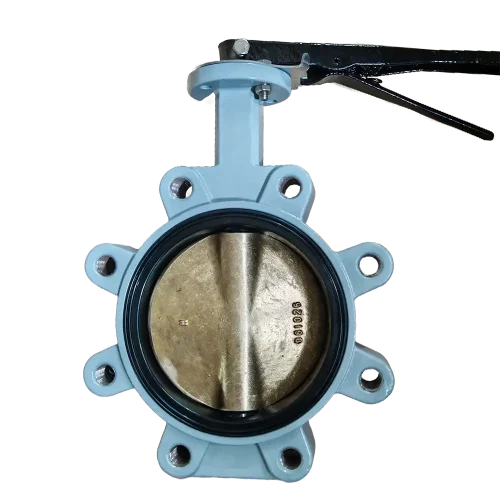

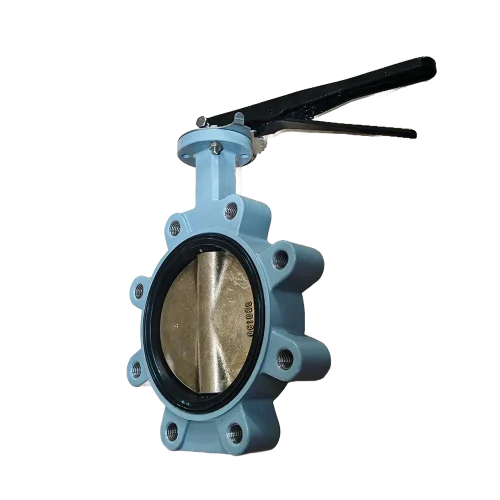

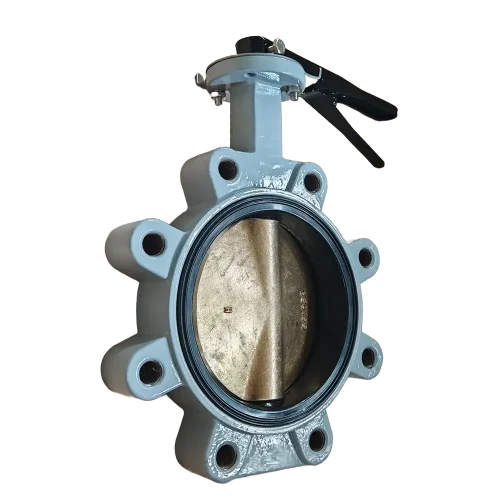

Features of Aluminum Bronze Lug Butterfly Valve 150lb
- WCB Cast Steel Body: High-strength A216 WCB construction ensures reliable performance under Class 150 pressure conditions.
- Aluminum Bronze C954 Disc: Offers excellent corrosion and cavitation resistance; suitable for seawater and corrosive fluids.
- Replaceable Soft-Seated Seat: Easily replaceable seat simplifies maintenance, minimizing lifecycle maintenance costs and downtime.
- ASME Class 150: Suitable for Class 150 piping systems and industrial pressure applications. Bidirectional tight shut-off—the resilient seat provides a reliable seal in both flow directions.
- Zero-Leakage Sealing: Resilient soft seat ensures bidirectional, bubble-tight shut-off.
C954 Lug Butterfly Valve 150lb Standard
| ITEM | Standard |
| Size Range | DN50-DN1200 |
| Design | EN593 | API609 |
| Face to Face | EN558 | ISO5752 | API608 | BS5155-4 |
| Top Flange | ISO5211 |
| Flange Drilling | PN6 | PN10 | PN16 | ASME B16.5 CL150 | JIS 10K |
| Pressure Rating | PN6 | PN10 | PN16 | PN25 | CL150 | JIS 10K |
| Tightness Test | ISO5208 | API598 | EN12266-1 |
Replaceable EPDM Lug Butterfly Valve Parts
| Parts | Ductile Iron type | WCB type | Stainless Steel Type | Duplex Stainless Steel Type |
|---|---|---|---|---|
| Body | Cast Iron(GG25) Ductile Iron(GGG40/50) |
A216 A217 A105(forged) |
SS304/ CF8 SS316/CF8M SS304L/CF3 SS316L/CF3M |
2205 2507 1.4529 |
| Disc | Ductile Iron with Ni coated Ductile Iron with nylon coated Ductile Iron with PTFE/EPDM lined Stainless Steel Duplex Stainless Steel Bronze |
SS304/ CF8 SS316/CF8M SS304L/CF3 SS316L/CF3M 2205 2507 1.4529 |
2205 2507 1.4529 |
|
| Seat | NBR, EPDM, PTFE, Viton, Hypalon, Silicon, PFA | |||
| Stem | SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel | Duplex Stainless Steel, Monel | ||
| Actuator | Hand Lever, Worm Gear, Electric, Pneumatic | |||
Parameters of Soft Seat WCB Lug Butterfly Valve
| SIZE | øD | øD1 | L | L1 | H | H1 | H2 | ∅2 | ø3 | 4-ødl | T*T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 76.3 | 52.8 | 43 | 46 | 30 | 140 | 60 | 70 | 90 | 10 | 11*11 |
| DN65 | 89 | 64.6 | 45.6 | 49 | 30 | 150 | 67 | 70 | 90 | 10 | 11*11 |
| DN80 | 103.9 | 79.1 | 45.6 | 48 | 30 | 160 | 87 | 70 | 90 | 10 | 11*11 |
| DN100 | 135 | 104.4 | 52.0 | 56 | 30 | 180 | 105 | 70 | 90 | 10 | 11*11 |
| DN125 | 159 | 123.3 | 56.0 | 60 | 30 | 190 | 118 | 70 | 90 | 10 | 14*14 |
| DN150 | 188.4 | 155.6 | 56.0 | 60 | 30 | 210 | 130 | 70 | 90 | 10 | 14*14 |
| DN200 | 238.2 | 202.5 | 60.0 | 64 | 35 | 235 | 166 | 102 | 125 | 12 | 17*17 |
| DN250 | 292.4 | 250.5 | 68.0 | 72 | 35 | 270 | 197 | 102 | 125 | 12 | 22*22 |
| DN300 | 344.2 | 301.6 | 78.0 | 83 | 35 | 305 | 231 | 102 | 125 | 12 | 22*22 |
| DN350 | 375.2 | 333.4 | 78.0 | 83 | 35 | 360 | 255 | 125 | 150 | 14 | 22*22 |
| DN400 | 439.5 | 389.6 | 102.0 | 106 | 50 | 381 | 293 | 140 | 175 | 18 | 27*27 |
| DN450 | 490.5 | 440.5 | 114.0 | 118 | 50 | 425 | 325 | 140 | 175 | 18 | 27*27 |
| DN500 | 535.4 | 491.6 | 127.0 | 132 | 50 | 470 | 363 | 140 | 175 | 18 | 36*36 |
| DN600 | 653.7 | 592.5 | 153 | 159 | 60 | 565 | 425 | 165 | 210 | 22 | 36*36 |
Manufacture Process of Soft Seat Butterfly Valve
Appliation of Aluminium Bronze Disc Butterfly Valve
- Marine and Shipbuilding Engineering: Ballast Water Management Systems (BWMS), seawater cooling circuits, bilge water systems, and fire-fighting systems.
- Offshore Oil & Gas Platforms: Seawater intake/discharge for FPSOs and fixed platforms; offshore fire-fighting water networks.
- Seawater Desalination and Coastal Water Treatment: SWRO (Seawater Reverse Osmosis) intake systems, high-salinity brine discharge pipelines, and seawater circulation for coastal power plants.
- Highly Corrosive Industrial Applications: High-velocity, cavitation-resistant pipelines; transport of industrial wastewater and acidic/alkaline media.
Certificates of Zfa Butterfly Valve- China Top Valve Supplier
WRAS
CE
ISO 9001
EAC Russia
FAQ of 150lb Aluminum Bronze C954 Lug Butterfly Valve
1. Why is C954 aluminum bronze suitable for butterfly valves?
C95400 aluminum bronze offers excellent mechanical strength, wear resistance, and corrosion resistance, particularly in seawater and marine environments. Consequently, it is a preferred material for butterfly valves used in marine vessels, offshore engineering, and other corrosive settings.
2. Can a butterfly valve with a C954 aluminum bronze disc and EPDM seat be used in seawater?
Yes. Both C954 aluminum bronze and EPDM exhibit excellent resistance to seawater corrosion, making them suitable for many seawater and marine piping systems. When selecting a valve, however, one must also consider the materials of other components (such as the stem and fasteners) as well as factors like seawater composition, temperature, pressure, and specific operating conditions. If you are unsure, please contact our team.
3. Which flange standards are compatible with the 150LB Lug butterfly valve?
The 150LB Lug butterfly valve featured here is compatible with ASME Class 150 flanges to meet project requirements.
ZFA also offers butterfly valves compatible with other flange standards, such as PN and JIS; specific bolt hole dimensions and flange standards should be confirmed based on project requirements prior to ordering.
4. Can ZFA customize C954 butterfly valves for marine engineering projects?
Yes. ZFA supports OEM and custom production of butterfly valves. We can customize materials for the valve body, disc, seat, and stem based on the customer’s specific operating conditions and technical requirements, and configure options such as actuation methods, flange standards, actuators, and product markings.
