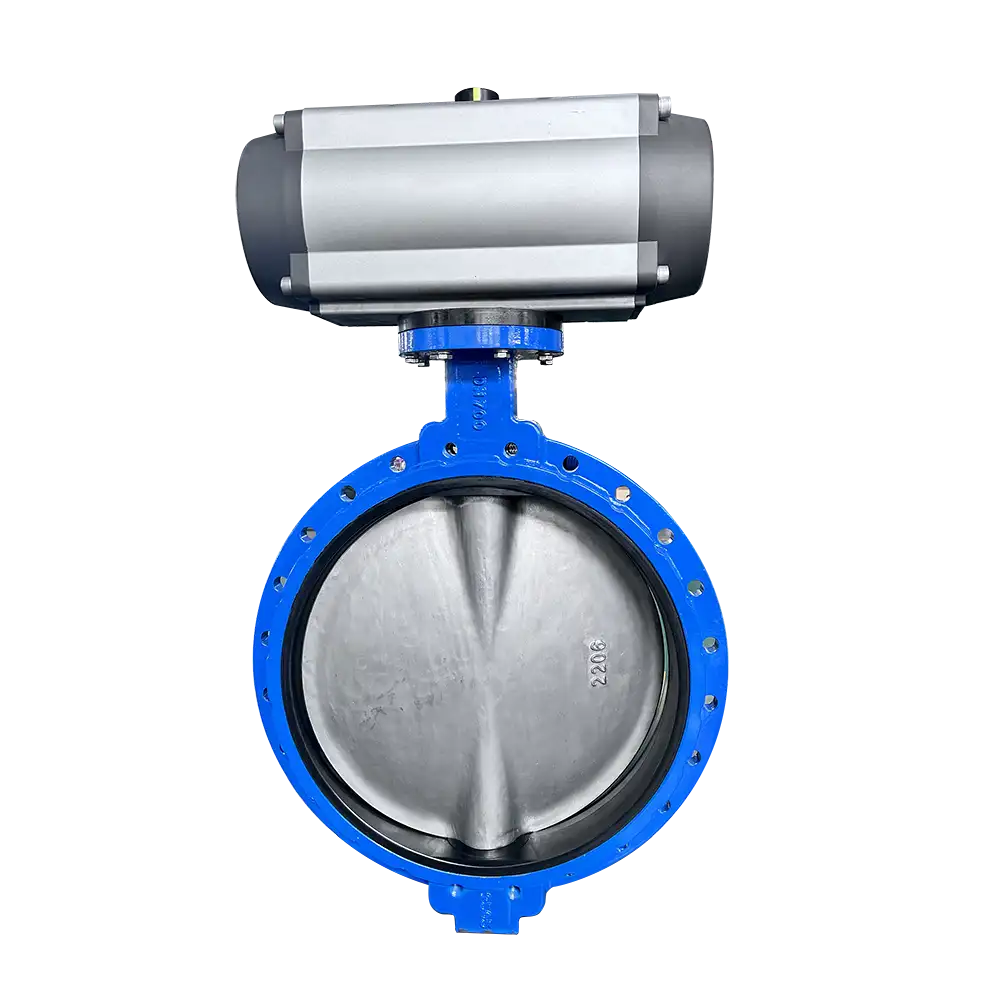

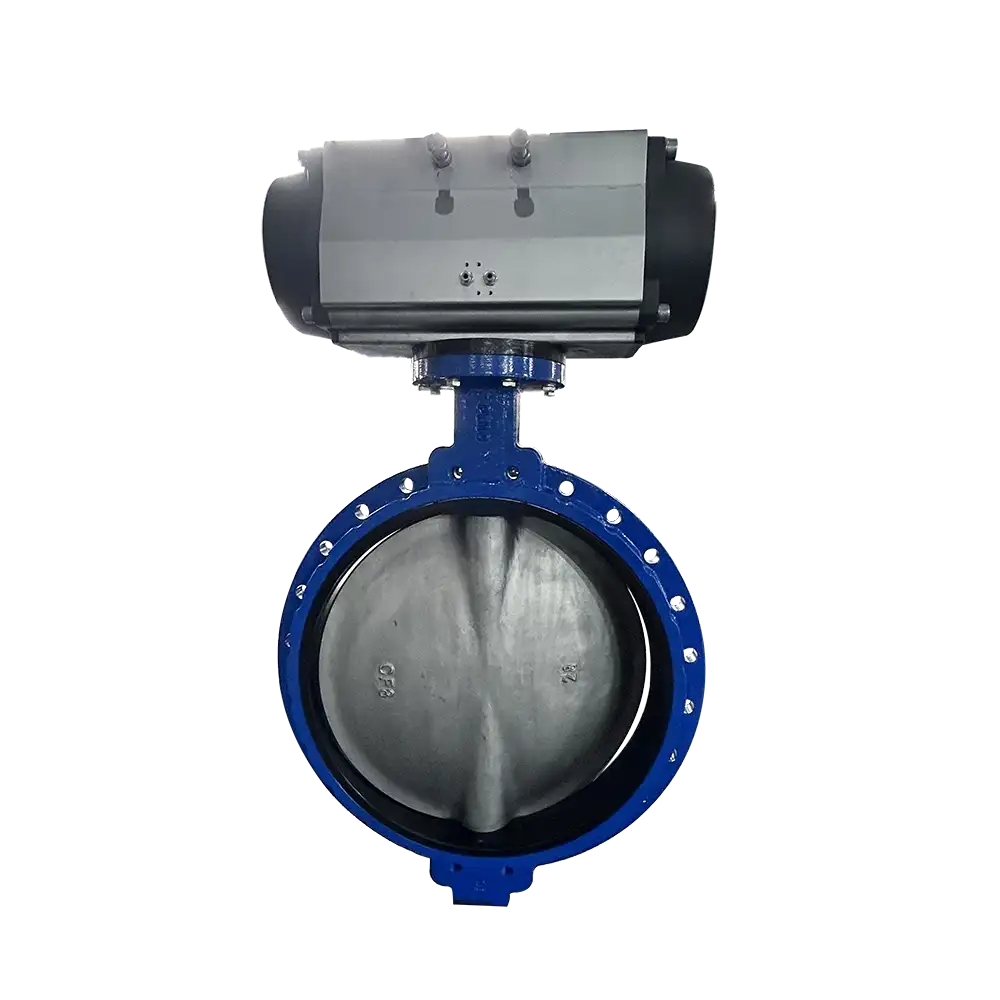

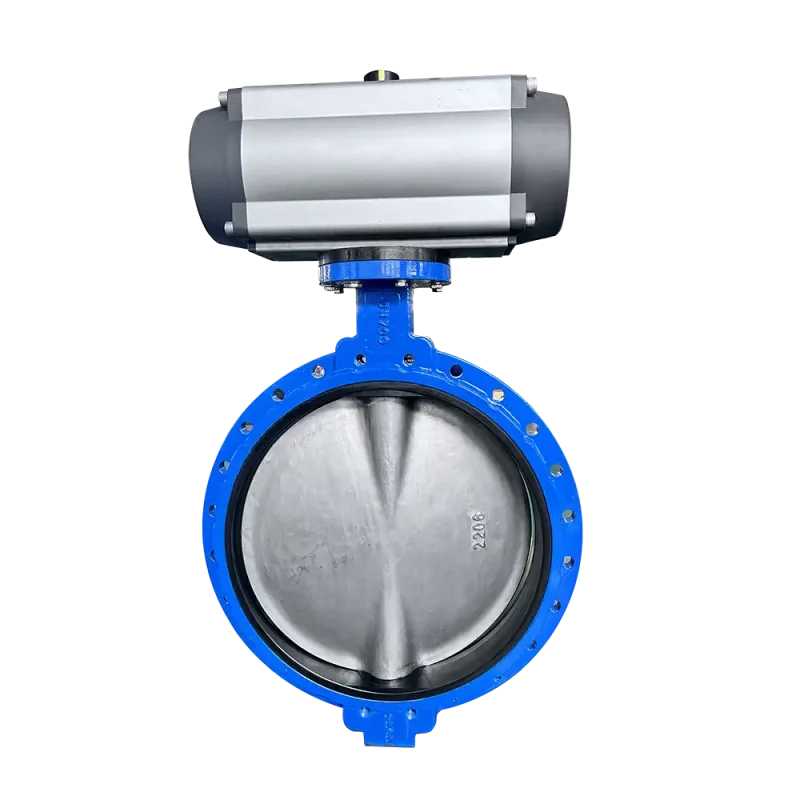

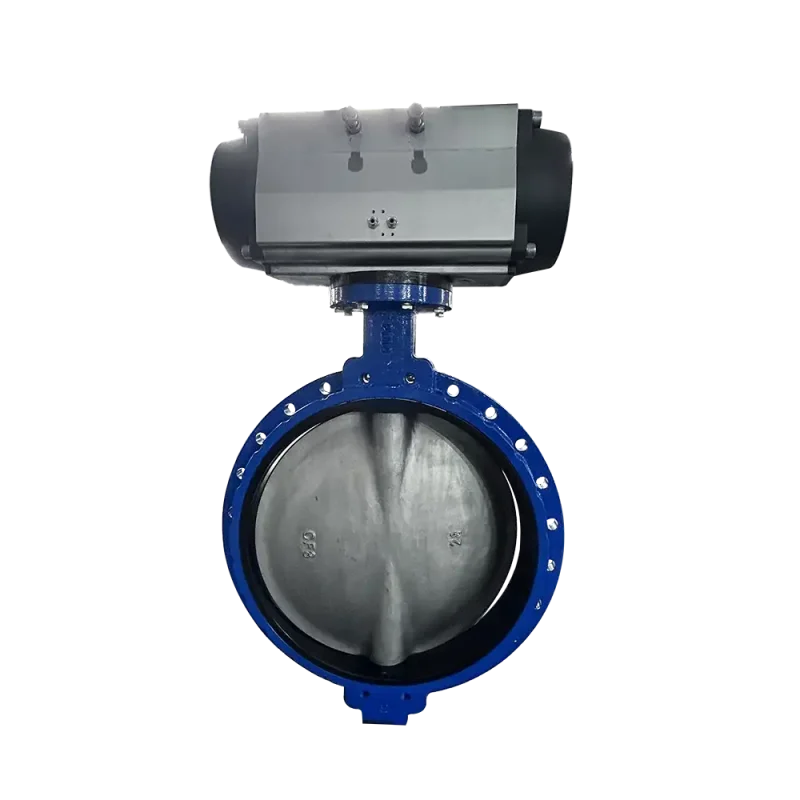

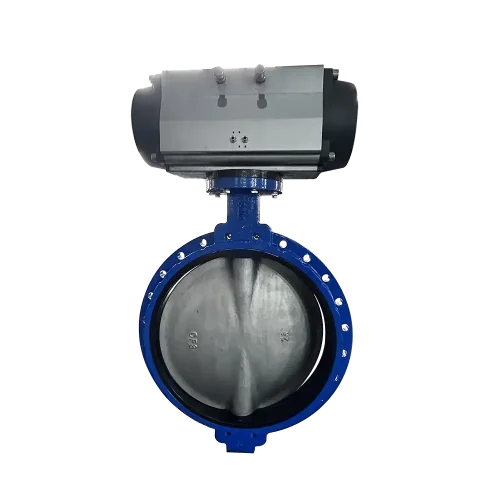

Hard Back Seat Pneumatic Single Flanged Butterfly Valve PN10
Basic Info of Pneumatic Single Flanged Butterfly Valve
Structure: the pneumatic single flanged Butterfly Valve has only one flange surrounding the middle of valve body.
The pneumatic actuator is a key component of the valve. It drives the opening/closing or regulating function of the valve through compressed air and is suitable for automation systems or scenarios requiring remote control.
Double-Acting: The actuator is switched on/off by air, without springs, suitable for systems that require frequent operation.
Pneumatic single flanged Butterfly Valve design is lightweight and compact, making it ideal for projects with limited space or budget
Compared with the double flange butterfly valve, the single flange butterfly valve reduces the weight and material of one side of the flange, reducing manufacturing and installation costs.
The hard back seat is used to enhance sealing capabilities, ensuring minimal leakage and reliable operation under pressure.
whatever type of butterfly valve you need, contact us!
Single Flanged Butterfly Valve Parts
| Parts | Ductile Iron type | WCB type | Stainless Steel Type | Duplex Stainless Steel Type |
|---|---|---|---|---|
| Body | Cast Iron(GG25) Ductile Iron(GGG40/50) |
A216 A217 A105(forged) |
SS304/ CF8 SS316/CF8M SS304L/CF3 SS316L/CF3M |
2205 2507 1.4529 |
| Disc | Ductile Iron with Ni coated Ductile Iron with nylon coated Ductile Iron with PTFE/EPDM lined Stainless Steel Duplex Stainless Steel Bronze |
SS304/ CF8 SS316/CF8M SS304L/CF3 SS316L/CF3M 2205 2507 1.4529 |
2205 2507 1.4529 |
|
| Seat | NBR, EPDM, PTFE, Viton, Hypalon, Silicon, PFA | |||
| Stem | SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel | Duplex Stainless Steel, Monel | ||
| Actuator | Hand Lever, Worm Gear, Electric, Pneumatic | |||
Mono Flange Butterfly Valve Standards
| ITEM | Standard |
| Design | EN593 | API609 |
| Face to Face | EN558 | ISO5752 | API608 | BS5155-4 |
| Top Flange | ISO5211 |
| Flange Drilling | PN6 | PN10 | PN16 | ASME B16.5 CL150 | JIS 10K |
| Pressure Rating | PN6 | PN10 | PN16 | PN25 | CL150 | JIS 10K |
| Tightness Test | ISO5208 | API598 | EN12266-1 |
Single Flange Paraments
| SIZE | PN16 | ∅D | ∅D1 | L | b | H1 | H2 | ∅2 | ∅3 | 8-ød1 | H | øF | K | K1 | ||||
| øE | øK | N-ød | ||||||||||||||||
| DN700 | 28″ | 910 | 840 | 24-ø37 | 744.1 | 695 | 165 | 24 | 624 | 520 | 254 | 300 | 18 | 80 | 63.35 | 18 | 72.15 | |
| DN800 | 32″ | 1025 | 950 | 24-ø40 | 849.9 | 794.7 | 190 | 24 | 672 | 591 | 254 | 300 | 18 | 80 | 63.35 | 18 | 72.15 | |
| DN900 | 36″ | 1125 | 1050 | 24-ø40 | 4-M36 | 947 | 864.7 | 203 | 24 | 720 | 656 | 254 | 300 | 18 | 100 | 75 | 20 | 84.8 |
| DN1000 | 40″ | 1255 | 1170 | 24-ø43 | 4-M39 | 1053 | 965 | 216 | 33 | 800 | 721 | 254 | 300 | 18 | 100 | 85 | 22 | 95.8 |
| DN1200 | 48″ | 1485 | 1390 | 28-ø49 | 4-M45 | 1264.1 | 1160.6 | 254 | 42 | 941 | 864 | 298 | 350 | 22 | 100 | 105 | 28 | 117.8 |
Manufacture Process of Butterfly Valve
Certificates of Zfa Valve
WRAS
CE
ISO 9001
EAC Russia
